WORLD LEADERS in Photo Chemical Etching metal

Since 1968, we have specialised in precision chemical etching of metals, building a reputation as the world leaders through exceptional customer service, lead-times and quality management of chemical etching and value-added services. Customers rely on our experience and technical expertise to ensure the highest quality production is maintained. We utilise the most efficient and reliable processes to maintain our bronze awarded SC21 accreditation and 98.5% On Time Delivery record.

All of our processes follow SC21, ISO9001, 14001 and 45001 with full traceability along the way. Our experience, coupled with our vast range of industry leading equipment and trusted network of partners makes us the perfect choice for precision manufacturing, whatever your requirements.

For more information on how we can reduce your costs & improve lead time contact our dedicated account managers on 01480 226699 or email enquiries@photofab.co.uk.

Talk to our experts

What are the benefits of our chemical etching service?

Fast prototyping
Rapid 24hr quoting
Short lead times
Product Realisation support team
Large stock of industry standard metals
Low-cost manufacturing process
Technically trained dedicated account managers
Low-cost digital tooling
Low-cost digital tooling design changes
Mixed sheet graphic tools for prototypes to full production
Vast range of metals can be etched
Etching to Micron accuracy

Extremely tight tolerances offered
Half Etched fold lines for tool-free forming
Half-etched forming to tight tolerances
Metal properties unaltered by the etching process
Logos can be etched into flat parts
Tabbed-in components offered or loose
No heat or force used in production that could distort parts
Burr & stress-free process
Blemish free finish
As low as 0.010mm sheet thickness up to 1.2mm
Heat treatment process available to harden metals

Full hard tool forming service available
Plating available
Access to a vast collection of uni form tooling (save thousands and quicken lead times)
Flat parts available in 24 hours
Standard rapid service parts ready in 3 working days
Sample packs available
Seam Welding and spot welding available
Quality accredited to ISO 9001, ISO 14001, ISO 45001 and SC21 Bronze
Full manufacturing service and supply chain management

how does chemical etching work?

Chemical etching metal is a machining process which uses acids and other chemicals to dissolve exposed areas from a metal sheet to produce highly accurate components. A masking film is created from the design to protect the areas on both sides of the metal sheet, so only the exposed areas are etched. This process has incredible precision, removing anything from 10 microns (0.0004”) to over 0.5mm (0.020”) on both sides of the sheet simultaneously, creating a highly efficient and effective fabrication process. See our metal etching process sections for more information.

Metal etching is sometimes known as aluminium etching, ferric chloride etching, acid metal etching, chemical etching, or photo chemical etching. The range of metals possible is vast, from brass, copper, beryllium copper, to ferrous metals including stainless steel, carbon steel and mild steel, up to a thickness of 1.5mm. See our Materials section for a full list of metals that can be chemically etched.

For metal cutting over 1.5mm, up to 22mm, we can offer laser cutting, reassuringly managed and quality controlled by Photofab to the exact same high standards as our metal etching.

chemical Etching process tour

The below is an overview of our photo chemical etching process, including design and advice service, plotting, metal selection and preparation through to lamination, etching and packaging.

1. Design Advice

At all stages of the chemical etching process, our engineers will offer advice both to improve the product and reduce the costs. We are able to view all types of data; from sophisticated CAD files to rough sketches. Our metallurgist will advise you on the most suitable metal to use for your application. A wide range of metals and thicknesses are held in stock.

2. Receipt of Drawings

The customer sends data to us either in the form of a drawing or an electronic file. This is converted using CAD to allow for the etching compensation and “stepped and repeated” to fit as many components as possible onto the film.

3. Film Plotting

This is then laser plotted to create the Graphic Tool. Two tools are prepared; one for each side of the metal, which allows etching from both sides. Variances between the two tools can facilitate “half-etching” from one side.

4. Metal Selection

We carefully review your drawing to ensure that the correct metal has been selected both from a performance and cost perspective. Full traceability is maintained on all grades of metal, certificates are available upon request.

5. Metal Preparation

Before coating the metal with a photosensitive resist, the metal is thoroughly cleaned to remove all dirt, rust, greases and oils. This allows good adhesion to the photosensitive resist to be obtained.

6. Resist Lamination

Photosensitive resists are UV light-sensitive polymers which are applied as a dry film to the metal either by hot roller lamination. The type of process used depends on the metal being used and the type of subsequent processing required. The coating is applied to both sides of the metal.

7. Printing

The Graphic Tool carrying the component image is now laid over both sides of the metal which has been previously coated with the photosensitive resist. The combination of Graphic Tool and coated metal is then exposed to UV light to transfer the image onto the metal coating.

8. Developing

The area of photosensitive resist which has been protected from the UV light by the Graphic Tool, remains soft and is then chemically developed away leaving the metal exposed ready for etching. The component image remains protected by the resist.

9. Etching

The prepared metal sheets are now passed through the etching machine to remove the exposed metal. Virtually all metals can be etched, although some are etched more readily than others. Photofab have developed bespoke chemistry for a range of materials allowing us to offer the highest quality. The etchant is regenerated to maintain a constant etch rate and lower environmental impact.

10. Stripping

The final process of PCM (Photo Chemical Milling) is to strip off the resist from the etched component and ensure that the metal is clean. A combination of automation and operator care is employed depending on the component specification.

11. Inspection and Packing

The components are checked electronically to ensure they conform to dimensional specifications, and they are visually inspected for any surface defects. High quality finished products are then securely packed for overnight delivery.

Etching Tolerances

chemical etching services

For prototyping

Prototyping is often a painstaking process of trial and error – even minuscule design changes can cost valuable time and money. Chemical etching drastically reduces the cost and time consumption of these experiments. Rapid prototyping is possible, ensuring that you can easily implement cost-effective improvements. See our Rapid Turnaround Service for more details.

Chemical etching bridges the gap between prototyping and full production, using the same tooling to make one part or a million. We’d be happy to discuss how we can bring your ideas to life, so you can see a return on your hard work. Send us your specification to get a quote within 24 hours.

For Volume Production

Continuous investment into the business and the team has delivered the latest advancements in automation technology and processes. Every stage in production has been refined to offer the highest standards with the shortest lead-times possible, from digital tooling, with quick and easy changes to specifications, multi-component designs all on one sheet, through to our multi-sided burr-free metal etching and automated stripping line.

The entire process from quote to delivery has a dedicated point of contact, reinforcing the production process, with full traceability throughout.

Our Chemical etching tabbing GUIDELINES

In order to further increase the precision of components, we ‘tab’ parts into sheets of metal. Tabs are slivers of metal, that serve to retain parts in sheet form. In other words, once completely etched, the components are not ‘loose’ parts, but instead are held into sheet form using these tabs.

We have devised four different tab styles. These are shown below along with features of each.

Inboard Twist Tabs

Full thickness twist tab
Leaves minimal material loss and no protrusion

Half etch outboard tabs

Used when small protruding witness is acceptable, or when inboard is not an option
Can be finished on thicker materials to remove protruding witness

Half etch inboard tabs

Half etched break line style
Used when a small protruding witness is not acceptable
Breaks slightly inboard or on the component edge leaving no protrusion

Full thickness outboard tabs

Used when small protruding witness is acceptable – or when inboard is not an option
Can be finished on thicker materials to remove protruding witness

*1mm is not the dimension of the feature, but is for scale reference only

Tab-less parts can be made if required.

CHEMICAL ETCHING benefits

Discover the advantages of chemical etching.

Low-Cost Tooling

With chemical etching, tooling production doesn’t require the same long-winded, expensive mechanical processes as other methods. Bespoke tooling can be created quickly via CAD – and in the unlikely event of the tooling wearing out, a replacement can be just as quickly created and supplied, free of charge. Contact us for a quote to see how our low-cost tooling can make a huge difference in your production.

Low-Cost Design Changes

The chemical etching process allows the designer to do practical testing at low cost. Rapid prototyping is possible ensuring that cost-effective improvements are easy to implement.

Mixed Graphic Tools for Prototypes

The digital tooling can accommodate several designs, therefore if you are prototyping and wish to trial two or three options on the same sheet of metal, you can. This will greatly reduce the cost of prototyping and reduce lead-times.

HALF-ETCHED FORMING

Forming lines can be half etched into the metal to allow components to be formed by hand.

Mixed Graphic Tools for PROTOTYPE TO FULL PRODUCTION

Chemical etching can be used to make one or a million parts, with the identical tooling used every time. This allows the engineer or designer to develop their concept from prototype to full production quickly and easily, maintaining highly accurate tolerances.

METAL PROPERTIES UNALTERED

Chemical etching carries the unique advantages of leaving the internal structure of the metal unchanged. Neither does it affect the properties of the metal with regard to hardness, grain structure, or ductility of the metal.

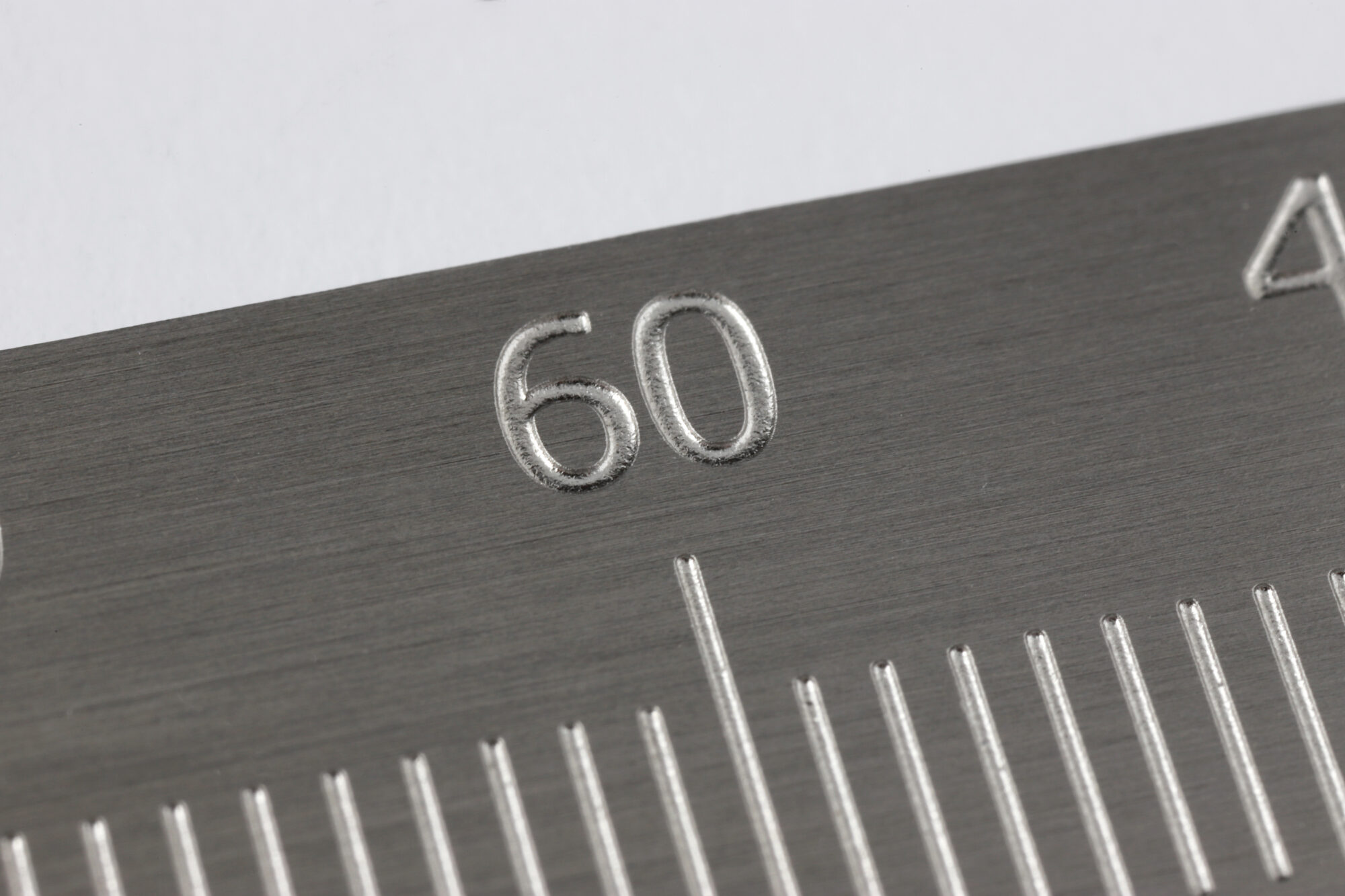

Identification Marks

Company logos, part numbers or other identifying marks can easily be etched into the surface during manufacture at no extra cost.

Tabbed-in components

When individual components are tabbed-into sheets, there are benefits of improved tolerances and lower costs.

Metals Suitable for Chemical Etching

The foundation of the component is the metal.

We take great care in the selection of the right metal for the component application. Wherever possible, we use a special photo-etching grade, which is more uniform in thickness and flatter than normal stock. Our engineers and metallurgists will be pleased to advise on the grade of metal suitable for your application.

An extensive range of metals in various degrees of hardness and thickness are held in stock ready to meet a Rapid Delivery service. Metal thickness of 0.005 to 1.5 mm is suitable for through etching, while any thickness of sheet material can be surface etched.

Typically customers are looking at chemical etching aluminum or stainless steel components, but we also have great experience with Nickel and Copper alloys.

The following list of metals is suitable for chemical etching and forming, and many are held in stock. If you don’t see what you need, please telephone us on 01480 226699 or contact us using the form below.

Stainless Steels

Austenitic (301, 302, 304, 316, S526, S527), Martensitic (321, 410, 420), Precipitation Hardened (17/7), Heat Resisting (309, 310)

Other Steels

Mild Steel, Carbon Steel, Tool Steel, Spring Steel, Transil, Losil.

Nickel Alloys

Nichrome, Mu Metal, Nickel Copper (70/30), Inconel, Nickel Brazing Foil.

Nickel/Iron Alloys

Invar, Alloy 42, Kovar, Radio Metal.

Copper

Tough Pitch 101, Oxygen free – High Conductivity.

Copper Alloys

Brass, Phosphor Bronze, Beryllium Copper, Nickel Silver, Ferry Constantan.

Aluminium and Aluminium Alloys

Silver and Alloys

Silver, Silver Alloys, Silver/Copper, Silver/Palladium, Silver Brazing Alloys.

To check the stock of particular metals, or advice on metal suitability, contact us or telephone us on 01480 226699.
